GQ-FL Flexible Mounting Structures,Flexible Mounting PV Bracket,Low Cost,Strong wind resistance,Easy to install

Place of Origin CHINA
Brand Name GQ
Certification IOS9001,IOS14001,IOS45001,CE
Model Number GQ-FL Flexible Mounting Structures
Minimum Order Quantity 1MW or 26 tons
Price RMB/10000-15000/tons,Negotiable
Packaging Details Bale/pallet/Wooden box /20GP/40GP
Delivery Time 2-4 weeks upon receipt of downpayment
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 1MW or 26 tons per 7 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Maximum Span Spacing 40m Number Of Installable Components 300 Pieces Per Row
Maximum Inclination 25° Process Hot Dip Zinc
Applicable Sites Large-slope Mountains And Fish Ponds Component Fixing Method Back-lock Mounting
Design Wind Speed 3m/s, Can Be Adjusted According To The Project Site
Leave a Message
Product Description

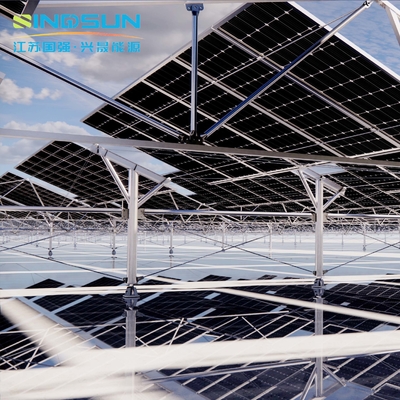

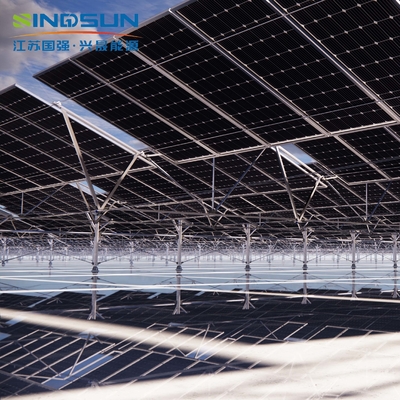

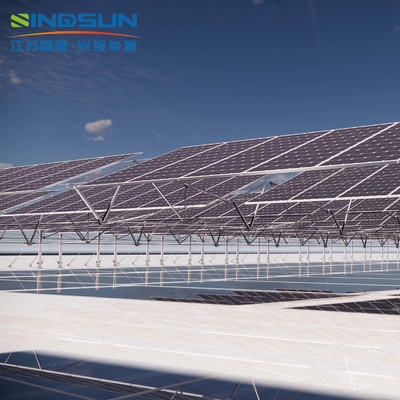

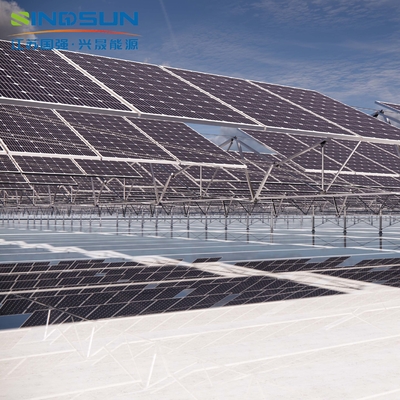

GQ-FL Flexible Mounting Structures



Flexible mounts have the characteristics of large span, high headroom and zero deflection, which attract many PV mount manufacturers. According to the statistics to the 20 about 1.5GW flexible bracket projects, mountain accounted for 70%, fishing light and water accounted for 30%, is expected that the current total installation of domestic flexible bracket is not less than 3GW.
Flexible bracket market recent strong demand, mainly because of the southwest, Yunnan and Guizhou area, large slope mountain project conventional fixed bracket installation can not be normal, the second is the conventional terrain PV land area is not enough, the use of flexible bracket large span to adapt to the characteristics of the slope to solve the problem of insufficient land for each mountain project; at the same time, Hunan, Hubei, Jiangxi fishing light and other PV and other industrial combination of projects, flexible bracket can effectively reduce the need for high headroom and reduce the pile foundation.
The flexible support also makes many projects that could not be built originally, such as projects above highways and mountainous areas with excessive slopes, come to life, which can be said to "turn the impossible into possible".
In addition to maximizing the utilization of land space, the flexible bracket also has a strong pre-installation to shorten the construction period, complex terrain, higher power generation, flexible and adjustable characteristics, can be called the "special forces" in the PV bracket.



1,The large span design of nearly 40m is suitable for agricultural and fishery PV projects.
2,Reducing the amount of piles: the amount of piles used per MW is as low as 108pcs.
3, Strong wind resistance: the lower layer adopts the unique double cable, flared tension structure; effectively enhance the overall ability to resist the horizontal force of wind load, front and rear rows of truss type connection, as well as the upper and lower double cable structure, effectively reduce the overhang ratio of the large span structure, enhance the overall wind resistance of the bracket
4,Adapting to large inclination angle: it can make the component tilt angle to achieve larger inclination angle and enhance the power generation capacity.
5,Simple installation: Tensioning adjustment of steel strands is realized through special tensioning structure and screw teeth.
6, Lower cost: by optimizing the structure, optimizing the steel strand arrangement, etc., in the case of reducing the amount of pile foundation, reduce the investment cost by 2~5% than the traditional power station.
7,Reduce the diameter of steel strand, further reduce the amount of steel strand and its supporting node specifications, more convenient construction.
8, Double-layered cable arrangement can greatly improve the structural load-bearing capacity and reduce the size of pre-stress.
9, The crossed double cable arrangement can improve the horizontal stiffness to a certain extent and enhance the structural integrity.
10, Each column is connected by trusses to improve structural integrity and stability.



Single-layer tethered flexible PV Bracket

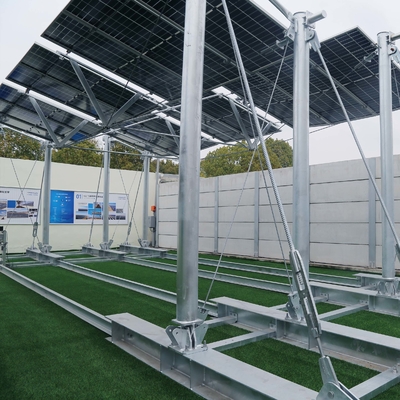

SingSun new double-layer cable flexible PV Bracket


About us:
Jiangsu Guoqiang SingSun Energy Co., LTD. is located in Liyang City, Changzhou, Jiangsu Province, with more than 1,700 employees Guoqiang SingSun, as a service provider focusing on providing the world's most advanced intelligent photovoltaic tracking bracket system solutions and intelligent manufacturing, is a technology-based enterprise serving global clean energy, committed to promoting energy reform and continuously optimizing energy infrastructure and materials. application to build a better future for mankind.
After years of deep cultivation and development, the company has formed four manufacturing bases in Liyang of Jiangsu Province, Tangshan of Hebei Province, Xinyang of Henan Province and Jiayuguan of Gansu Province, five production plants layout, with a peak annual capacity of 45GW, global cumulative delivery over 60GW, the company's customers throughout Germany, Australia, Europe, Latin America, the Middle East, Southeast Asia and other more than 10 countries and regions.

In 2022, Guoqiang SingSun began to engage in the research and development of flexible brackets, relying on the research and development bases in Changzhou and Suzhou, and established in-depth cooperation with many famous research institutes at home and abroad, such as "Shanghai Jiaotong University", "South China University of Technology", "Nanjing Institute of Technology" and "Swiss Institute of Technology". "The company has established in-depth cooperation with many famous research institutes at home and abroad, forming a trinity operation mode of production, learning and research, which has laid a solid foundation for the construction of the company's core competitiveness and medium and long-term development. The technical director introduced that at the beginning of the R&D, the company focused on solving the technical challenges of the flexible bracket, and recruited many experts from the field of suspension engineering through recruitment and cooperative R&D to ensure the reliability of the flexible bracket.
