GQ-A Fixed Adjustable Mounting System PV Bracket System Lifetime: >25 Years

Place of Origin CHINA
Brand Name GQ
Certification IOS9001,IOS14001,IOS45001, Changzhou High-tech Product Certification,CE
Model Number GQ-A Fixed-adjustable Mounting System
Minimum Order Quantity 1MW or 33 tons
Packaging Details Bale/pallet/Wooden box /20GP/40GP
Delivery Time 2-4 weeks upon receipt of downpayment
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 1MW or 33 tons per 7 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Loaded Battery Components 18-56pcs Specifications Of Loaded Battery Components Crystalline Silicon 250-660 Watts
1MW Weight 35 Tons Angle Adjustment Range 55°
Normal Adjustment Of The Maximum Wind Speed ≥ 22.2m / S System Lifetime >25 Years
High Light

GQ-A Fixed Adjustable Mounting System

,

Fixed PV Bracket System

Leave a Message
Product Description

GQ-A Fixed-adjustable Mounting System



Description:

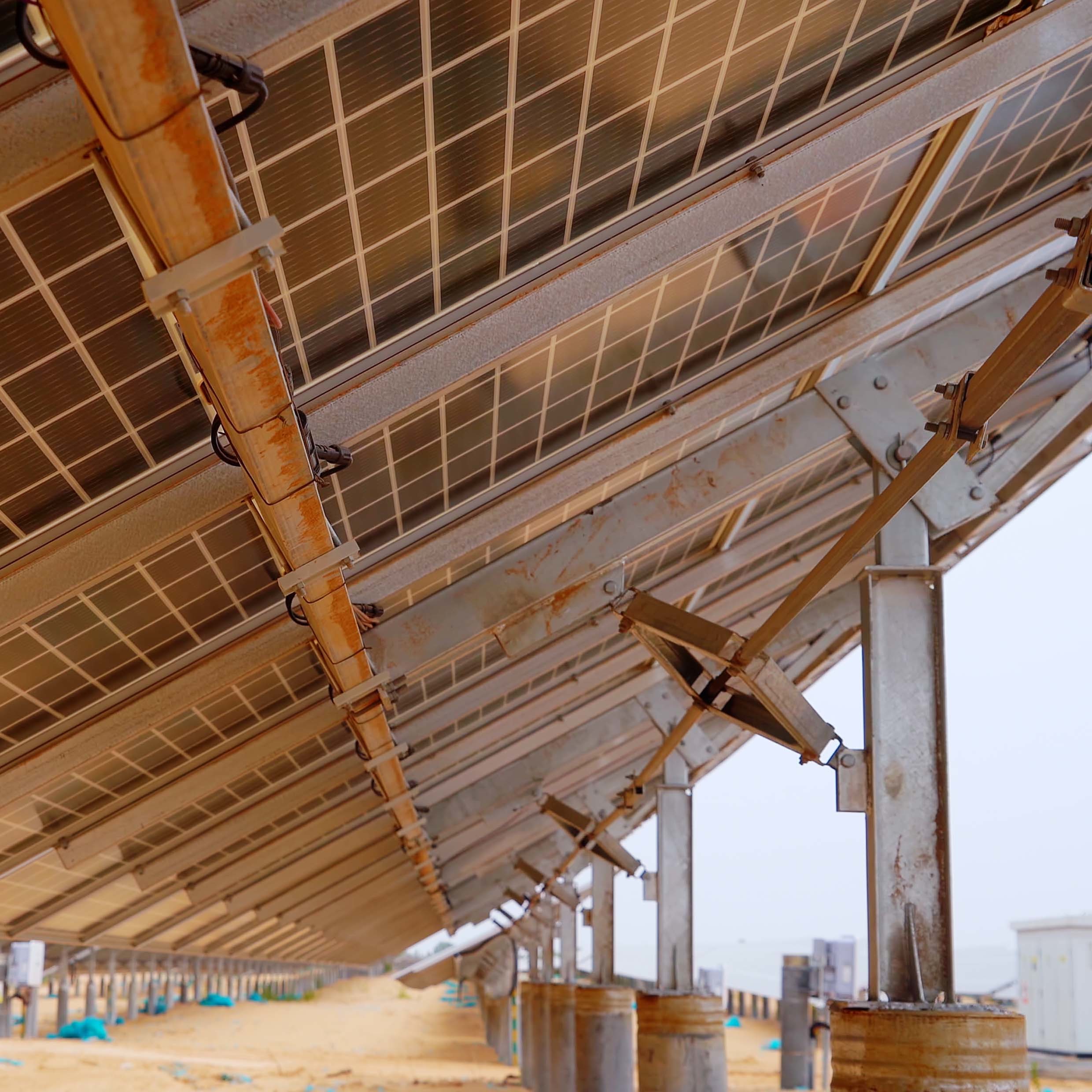

Each supporting column is equipped with a shear jack by using the bearing capacity of the shear jack. The screw rod of the shear jack is connected with the transmission shaft through the universal joint, and the support beam is raised or lowered by turing the screw rod.With a manner of turning screw rod of shear jack manually or electrically. and a synchronous adjustment of multi-point support, the angle of the PV module instaled on the bracket towards the sun can be adjusted.



Feature:

The price of jack adjustable bracket will be 0.03 Yuan / Whigher than that of fixed bracket.

The weight of 1MW adjustable bracket is about 35 tons.

Jack-adjust mounting system has been installed around 2.2 GW.

Requires low precision of foundation, adjustable mounting system requires the same precision as fixed ones.

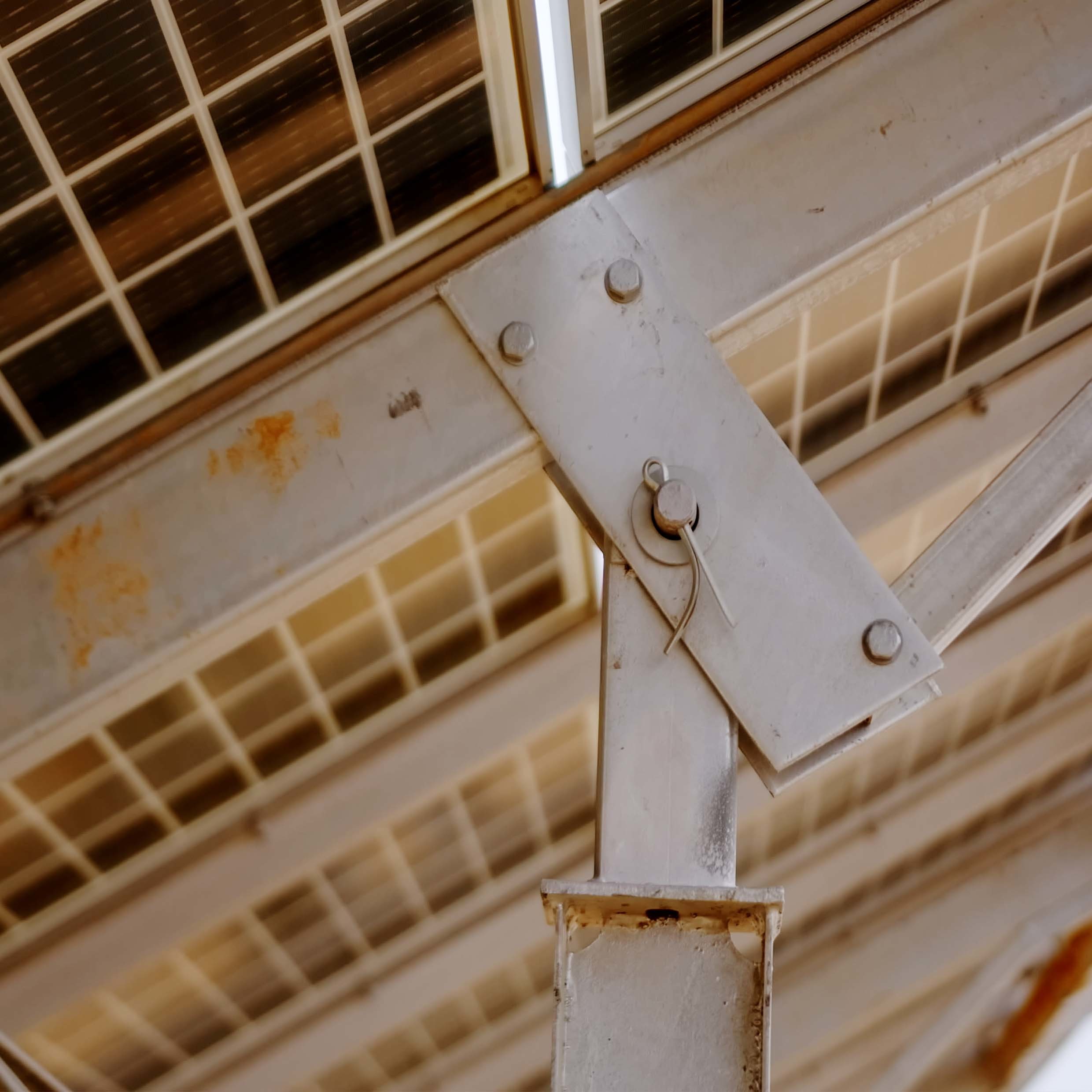

Jack -adjust support, each column is equipped with a jack,jack both in the adjustment process and in the non-adjustment state has self-locking function, through the transmission rod connection, the adjustment of synchronous stable when raised of lowered, jack bearing capacity and self-locking function can effectively prevent the assembly panel sloshing caused by wind shock.

Adjustable drive mechanism is jack, which adopts hot-dip galvanized anti-corosion process.The bracket is 25 years maintenance-free without lubricating oil.

Jack adjustable bracket, high adjustment efficiency, low cost, no need to tighten bolts or bolt 1 person can adjust at least 5 mw per day.

Adjustable bracket can continuously adjust the angle in the range of 55°, the adjustment angle can be set arbitrarily; no need to set fixed gear.

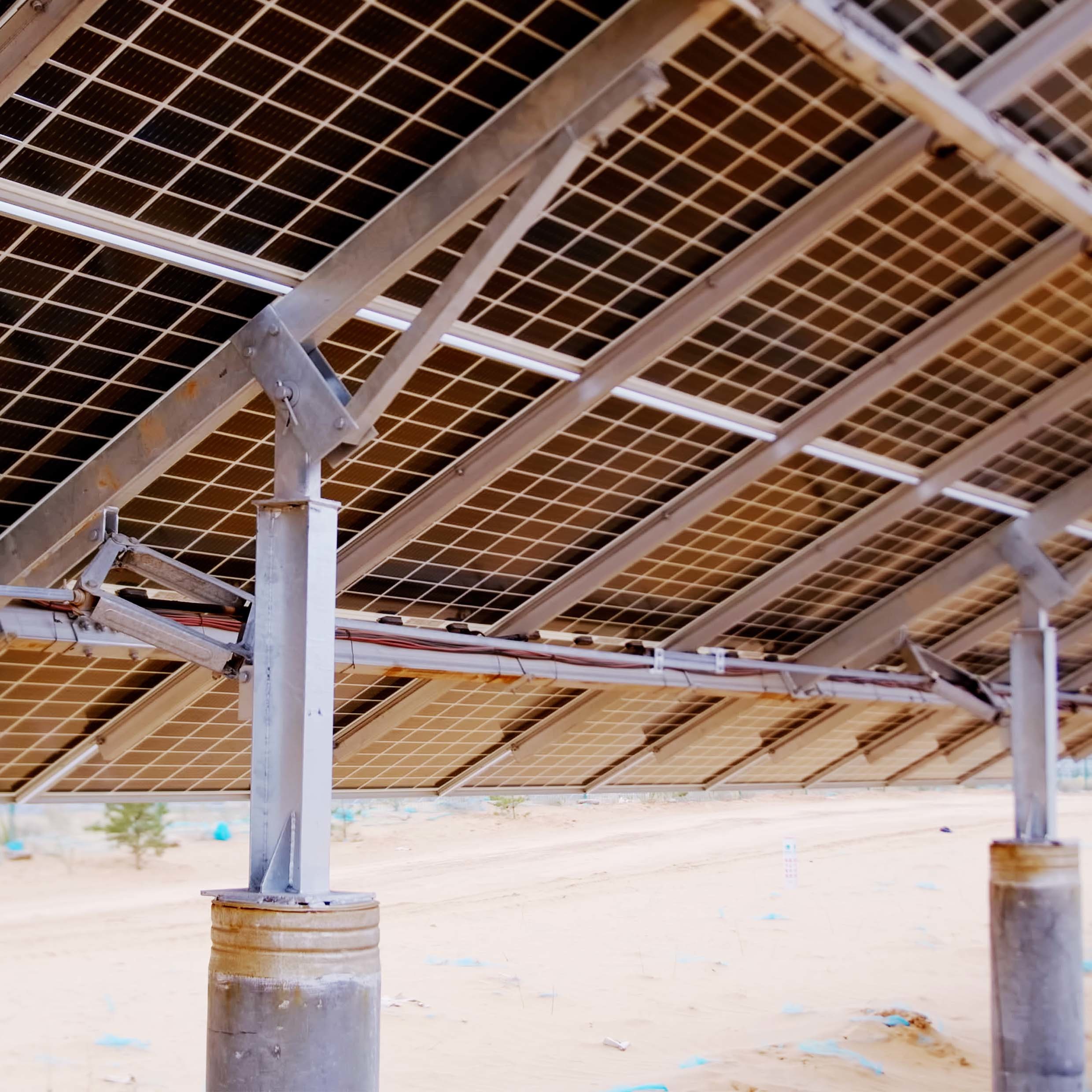

Transmission rod with universal joint link rod design, do not require multiple support points concentric.

Installation cost is low, easy to install, support and components installation time flat installation, after installation to adjust to the corresponding angle.

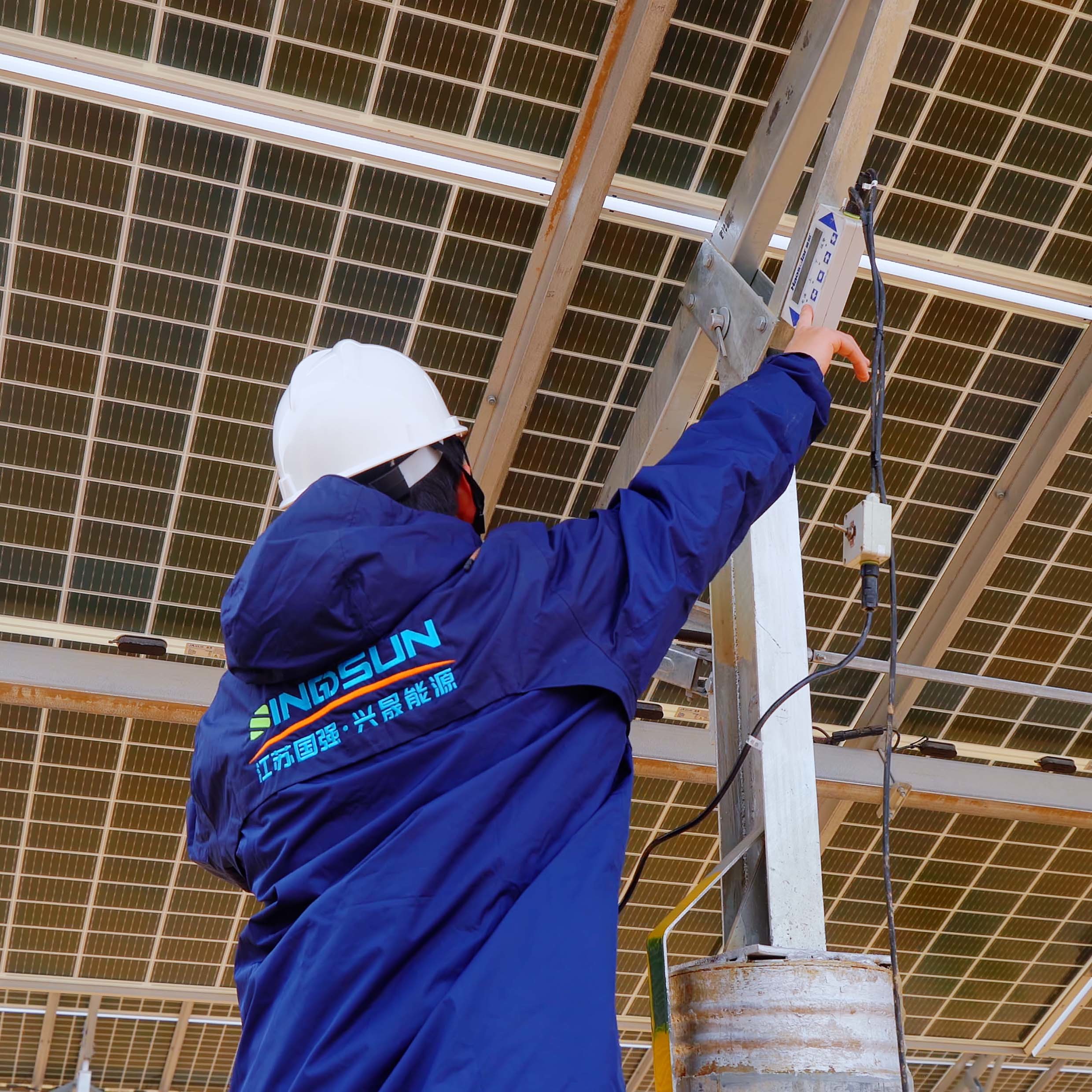

Use intelligent electric regulating device to adjust, the adjustment is simple and efficient.



About us:
Jiangsu Guoqiang SingSun Energy Co., LTD. is located in Liyang City, Changzhou, Jiangsu Province, with more than 1,700 employees Guoqiang SingSun, as a service provider focusing on providing the world's most advanced intelligent photovoltaic tracking bracket system solutions and intelligent manufacturing, is a technology-based enterprise serving global clean energy, committed to promoting energy reform and continuously optimizing energy infrastructure and materials. application to build a better future for mankind.
After years of deep cultivation and development, the company has formed four manufacturing bases in Liyang of Jiangsu Province, Tangshan of Hebei Province, Xinyang of Henan Province and Jiayuguan of Gansu Province, five production plants layout, with a peak annual capacity of 45GW, global cumulative delivery over 60GW, the company's customers throughout Germany, Australia, Europe, Latin America, the Middle East, Southeast Asia and other more than 10 countries and regions.
